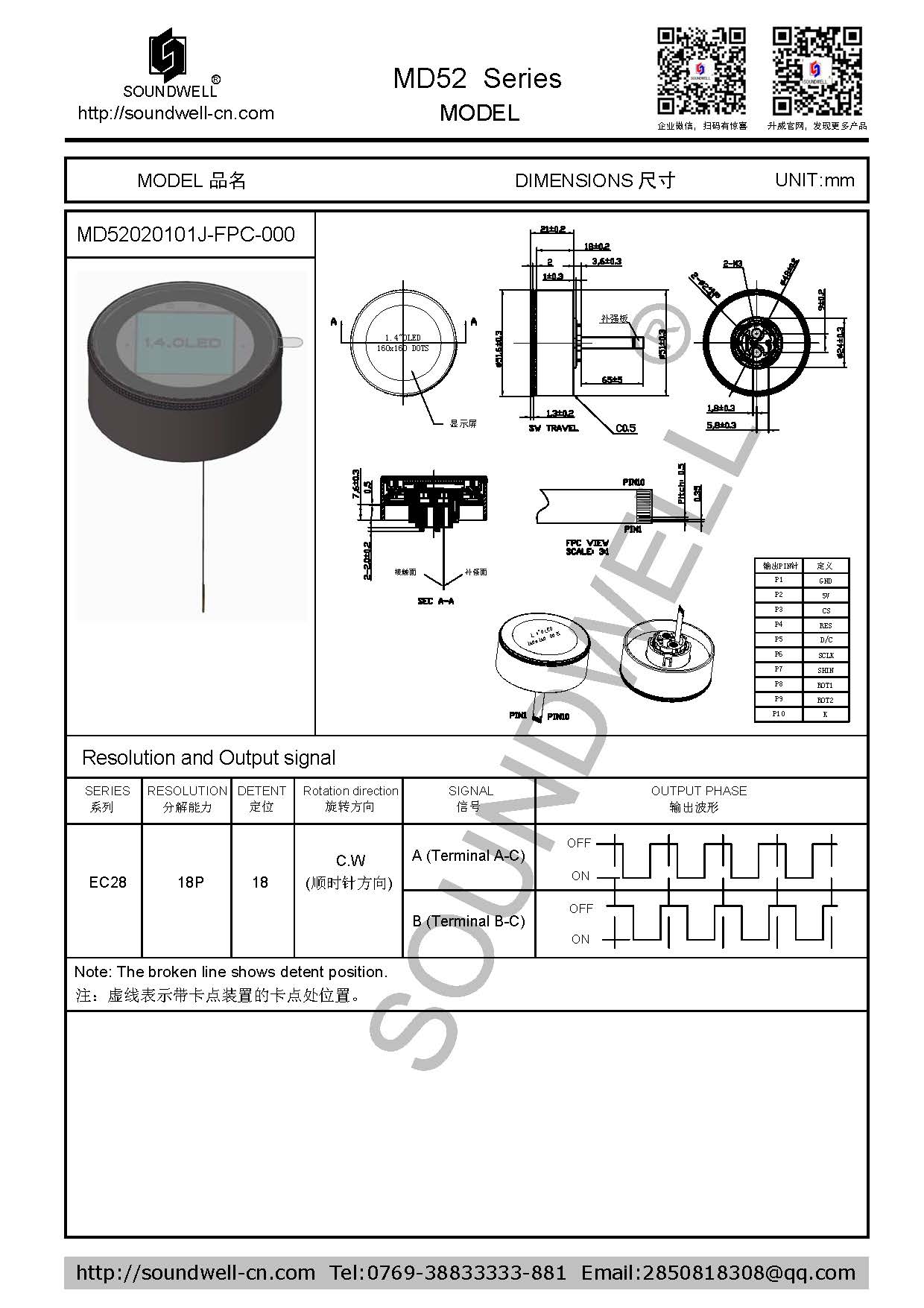

Module model： |
MD52 series |
|
| Applications： |
Household appliances and other electronic products. |
|
| Product Features: |
OLED display display effect is clear; IPX4 waterproof |
|
| Main Specifications: |
Rated voltage: DC 5V; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 22.5±7.5mN.m
2. Total rotational angle: 360°
3. Number of detent: 18
4. Switch travel: 1.3±0.2 mm
5. Switch operating force: 380±100gf
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 18 pulses
2. Rated power: DC5V 150mA
3. Insulation resistance: 100M? 1 Minute at DC 250V
4. Dielectric Voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 50,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
